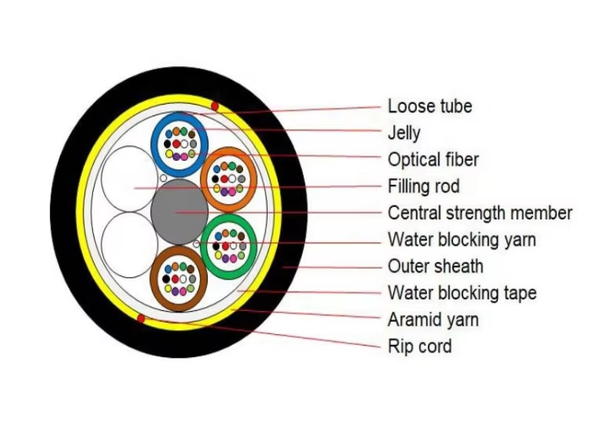

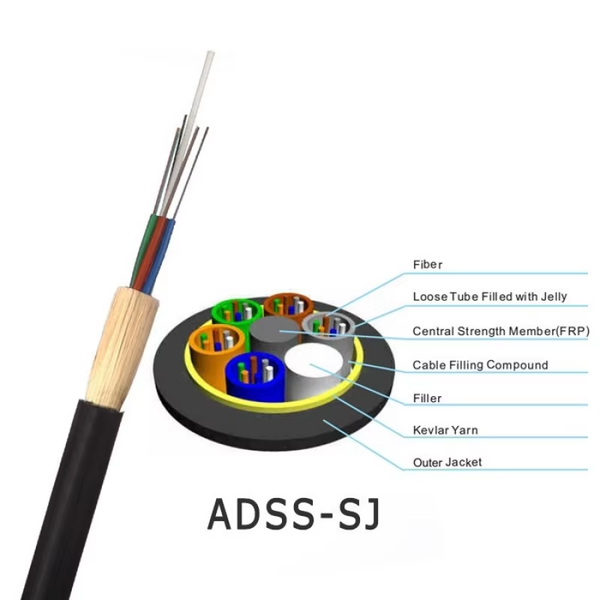

ADSS cable is loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics. The tubes are
filled with a waterresistant filling compound and stranded
around a FRP (Fiber Reinforced Plastic) as a non-metallic
centralstrength member into a compact and circular cable core. After the cable core is filled with filling compound.
It is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner
sheath as strength member,
the cable is completed with PE or AT (anti-tracking) outer sheath.
